NIRSpec Tutorial 3: Joint Modeling and Likelihood Analysis
In this notebook, we will use species and dynesty to load and sample atmospheric models, compute posterior distributions from a custom likelihood function, and plot best fitting results when jointly analyzing the continuum subtracted spectra alongside continuum-preserving datasets such as SPHERE or NIRCam.
Initialization and Preparations
[210]:
import os
import glob
from multiprocess import Pool
import numpy as np
import scipy
import matplotlib.pyplot as plt
import astropy.units as u
from astropy import constants as const
from breads.atm_utils import broadRGI
from breads.atm_utils import rprint
from breads.utils import filter_spec_with_spline
from breads.utils import get_err_from_posterior
import dynesty
from dynesty import NestedSampler
from dynesty import plotting as dyplot
from species.phot.syn_phot import SyntheticPhotometry
This cell must be modified! Specify the directory where you previously stored the data products. A new subdirectory is created for saving samples from the Nested Sampler.
[211]:
base_path = '/astro/epsig/tutorial/'
save_dir = base_path+'samples/'
if not os.path.exists(save_dir):
os.mkdir(save_dir)
Here we recover the list of targets from previously generated data products. For this demo we will only run on one example.
[213]:
target_list = sorted([t.split('/')[-1].split('.')[0] for t in glob.glob(base_path+'products/*.npy')])
print(target_list)
target_list = target_list[-1:]
target_list
['HD 19467 1', 'HD 19467 2', 'HD 19467 3', 'HD 19467 J']
[213]:
['HD 19467 J']
WARNING! This cell uses a large amount of resources. For sampler performance, we pre-compute the gaussian kernel broadening of the model atmosphere grid using the utility module breads.atm_utils.broadRGI once at R=2700 for the JWST/NIRSpec and once at R=100 for the ground-based low resolution spectra. Running this cell for the first time will take a long time (depending on the number of available cores). The results are saved in the same directory as the species config file so running it
a second time should reload all of the precomputations. The atmosphere model also needs ~30 GB of disk space.
[93]:
t2700 = broadRGI('sonora-elfowl-t',R=2700,preload=True)
t100 = broadRGI('sonora-elfowl-t',R=100,preload=True)
already exists, no preperations.
preloading...
done.
already exists, no preperations.
preloading...
done.
This cell uses a dictionary to create a mapping between target identifiers and the resulting broadRGI objects which is useful when iterating over multiple targets (perhaps one is t-type and the other is l-type and have different model objects).
[214]:
bRGI_dict2700 = {'HD 19467 J':t2700}
bRGI_dict100 = {'HD 19467 J':t100}
Here we load the best fit radial velocities computed in notebook #3 during the CCF computation step. This allows us to define the model atmosphere prior uniformly in deltaRV in a narrower range of relevant velocities. For example if one of your targets had a velocity around 50 km/s it would make sense to limit the sampler to 50 +/- 15 km/s so we define the prior on deltaRV to be +/- 15 km/s.
[216]:
best_RVs = np.load(base_path+'best_RVs.npy',allow_pickle=True).item()
best_RVs
[216]:
{'HD 19467 J': 2000.0}
And the nodes are necessary again.
[205]:
wv_nodes_dict = np.load(base_path+'nonuniform_nodes.npy',allow_pickle=True).item()
wv_nodes_dict['all'] = np.concatenate([wv_nodes_dict['nrs1'][:-1],wv_nodes_dict['nrs2'][1:]])
The following cell contains a collection of ground based spectroscopic and photometric data in a pair of nested python dictionaries with a particular structure. The dictionary keys are essentially:
spectroscopic_archive['target']['Reference Year']['identifier']['wave' / 'spec' / 'err']
photometric_archive ['target']['Reference Year']['filer_string']['flux' / 'err']
These objects are iterated over when computing the likelihood and when plotting the results. The filter_string dictionary key has to map directly to the SVO filter profile identifier (https://svo2.cab.inta-csic.es/theory/fps/ so that species.phot.syn_phot.SyntheticPhotometry can compute bandpass specific flux integrals for those data, while the identifer dictionary key is just to give a name for the plot legend to different spectra that exist in the same journal reference.
[206]:
spectroscopic_archive = {'HD 19467': {'Mesa 2020': {'SPHERE YJ': {'wave': np.array([0.970097, 0.971222, 0.972348, 0.973474, 0.9746 , 0.975726, 0.976852, 0.977978, 0.979105, 0.980232, 0.981358, 0.982485, 0.983612, 0.98474 , 0.985867, 0.986995, 0.988122, 0.98925 , 0.990378, 0.991506, 0.992634, 0.993763, 0.994891, 0.99602 , 0.997149, 0.998278, 0.999407, 1.00054 , 1.00167 , 1.00279 , 1.00392 , 1.00505 , 1.00618 , 1.00731 , 1.00844 , 1.00957 , 1.0107 , 1.01184 , 1.01297 , 1.0141 , 1.01523 , 1.01636 , 1.01749 , 1.01862 , 1.01975 , 1.02088 , 1.02202 , 1.02315 , 1.02428 , 1.02541 , 1.02654 , 1.02768 , 1.02881 , 1.02994 , 1.03107 , 1.03221 , 1.03334 , 1.03447 , 1.03561 , 1.03674 , 1.03787 , 1.03901 , 1.04014 , 1.04127 , 1.04241 , 1.04354 , 1.04467 , 1.04581 , 1.04694 , 1.04808 , 1.04921 , 1.05035 , 1.05148 , 1.05261 , 1.05375 , 1.05488 , 1.05602 , 1.05715 , 1.05829 , 1.05942 , 1.06056 , 1.0617 , 1.06283 , 1.06397 , 1.0651 , 1.06624 , 1.06737 , 1.06851 , 1.06965 , 1.07078 , 1.07192 , 1.07306 , 1.07419 , 1.07533 , 1.07647 , 1.0776 , 1.07874 , 1.07988 , 1.08101 , 1.08215 , 1.08329 , 1.08443 , 1.08556 , 1.0867 , 1.08784 , 1.08898 , 1.09011 , 1.09125 , 1.09239 , 1.09353 , 1.09467 , 1.0958 , 1.09694 , 1.09808 , 1.09922 , 1.10036 , 1.1015 , 1.10263 , 1.10377 , 1.10491 , 1.10605 , 1.10719 , 1.10833 , 1.10947 , 1.11061 , 1.11175 , 1.11289 , 1.11403 , 1.11516 , 1.1163 , 1.11744 , 1.11858 , 1.11972 , 1.12086 , 1.122 , 1.12314 , 1.12428 , 1.12542 , 1.12656 , 1.1277 , 1.12884 , 1.12998 , 1.13112 , 1.13226 , 1.1334 , 1.13454 , 1.13568 , 1.13682 , 1.13797 , 1.13911 , 1.14025 , 1.14139 , 1.14253 , 1.14367 , 1.14481 , 1.14595 , 1.14709 , 1.14823 , 1.14937 , 1.15052 , 1.15166 , 1.1528 , 1.15394 , 1.15508 , 1.15622 , 1.15736 , 1.1585 , 1.15965 , 1.16079 , 1.16193 , 1.16307 , 1.16421 , 1.16535 , 1.1665 , 1.16764 , 1.16878 , 1.16992 , 1.17106 , 1.1722 , 1.17335 , 1.17449 , 1.17563 , 1.17677 , 1.17791 , 1.17906 , 1.1802 , 1.18134 , 1.18248 , 1.18363 , 1.18477 , 1.18591 , 1.18705 , 1.18819 , 1.18934 , 1.19048 , 1.19162 , 1.19276 , 1.19391 , 1.19505 , 1.19619 , 1.19733 , 1.19848 , 1.19962 , 1.20076 , 1.2019 , 1.20305 , 1.20419 , 1.20533 , 1.20647 , 1.20762 , 1.20876 , 1.2099 , 1.21104 , 1.21219 , 1.21333 , 1.21447 , 1.21561 , 1.21676 , 1.2179 , 1.21904 , 1.22018 , 1.22133 , 1.22247 , 1.22361 , 1.22475 , 1.2259 , 1.22704 , 1.22818 , 1.22933 , 1.23047 , 1.23161 , 1.23275 , 1.2339 , 1.23504 , 1.23618 , 1.23732 , 1.23847 , 1.23961 , 1.24075 , 1.24189 , 1.24304 , 1.24418 , 1.24532 , 1.24646 , 1.24761 , 1.24875 , 1.24989 , 1.25103 , 1.25218 , 1.25332 , 1.25446 , 1.2556 , 1.25675 , 1.25789 , 1.25903 , 1.26017 , 1.26132 , 1.26246 , 1.2636 , 1.26474 , 1.26589 , 1.26703 , 1.26817 , 1.26931 , 1.27045 , 1.2716 , 1.27274 , 1.27388 , 1.27502 , 1.27616 , 1.27731 , 1.27845 , 1.27959 , 1.28073 , 1.28187 , 1.28302 , 1.28416 , 1.2853 , 1.28644 , 1.28758 , 1.28872 , 1.28987 , 1.29101 , 1.29215 , 1.29329 , 1.29443 , 1.29557 , 1.29671 , 1.29786 , 1.299 , 1.30014 , 1.30128 , 1.30242 , 1.30356 , 1.3047 , 1.30584 , 1.30699 , 1.30813 , 1.30927 , 1.31041 , 1.31155 , 1.31269 , 1.31383 , 1.31497 , 1.31611 , 1.31725 , 1.31839 , 1.31953 , 1.32067 , 1.32181 , 1.32295 , 1.32409 , 1.32523 , 1.32637 , 1.32751 , 1.32865 , 1.32979 , 1.33093 , 1.33207 , 1.33321 , 1.33435 , 1.33549 , 1.33663 , 1.33777 , 1.33891 ]), 'flux': np.array([ 4.15994e-17, 7.81304e-17, 4.29701e-17, 1.24970e-16, 2.08320e-17, 9.55939e-17, 6.48194e-17, 1.22450e-16, 1.24196e-16, 9.06878e-17, 8.23430e-17, 5.54854e-17, 7.88953e-17, 9.25722e-17, 8.81193e-17, 1.54719e-16, 1.32920e-16, 9.15695e-17, 6.21047e-17, 8.52151e-17, 1.22804e-16, 1.16254e-16, 1.45681e-16, 9.91229e-17, 1.29336e-16, 6.43788e-17, 8.73913e-17, 8.24501e-17, 1.20565e-16, 1.07268e-16, 1.23980e-16, 6.16592e-17, 6.52821e-17, 1.06646e-16, 1.10206e-16, 1.24648e-16, 1.14469e-16, 7.46227e-17, 8.95017e-17, 1.19981e-16, 9.11506e-17, 7.57016e-17, 1.17146e-16, 1.03904e-16, 8.08874e-17, 1.25840e-16, 1.00164e-16, 1.32573e-16, 1.06960e-16, 1.20312e-16, 1.21255e-16, 8.55273e-17, 9.64845e-17, 1.12267e-16, 1.36728e-16, 1.26547e-16, 1.56205e-16, 1.06980e-16, 1.07407e-16, 1.75698e-16, 1.71216e-16, 1.89678e-16, 1.97788e-16, 2.12916e-16, 2.02154e-16, 2.09171e-16, 1.69881e-16, 1.87391e-16, 2.34447e-16, 1.97905e-16, 2.36463e-16, 2.12692e-16, 2.37907e-16, 2.30803e-16, 2.55494e-16, 2.34668e-16, 2.84674e-16, 2.83917e-16, 2.26002e-16, 2.61521e-16, 2.42747e-16, 2.80901e-16, 2.78088e-16, 2.95939e-16, 2.92174e-16, 2.75463e-16, 2.72425e-16, 2.53967e-16, 2.95419e-16, 2.96139e-16, 3.01126e-16, 2.42099e-16, 2.96893e-16, 3.06642e-16, 2.91831e-16, 2.90233e-16, 2.75976e-16, 2.62057e-16, 2.44237e-16, 2.68710e-16, 2.61701e-16, 2.90056e-16, 2.75949e-16, 2.65184e-16, 2.48979e-16, 1.97536e-16, 2.30140e-16, 2.21753e-16, 1.71465e-16, 1.53295e-16, 1.45395e-16, 1.42060e-16, 1.20837e-16, 1.31019e-16, 1.08754e-16, 8.28207e-17, 8.97691e-17, 8.55106e-17, 5.89219e-17, 9.14207e-17, 8.48724e-17, 5.25122e-17, 4.73971e-17, 4.20248e-17, 4.66142e-17, 4.53303e-17, 7.02860e-17, 3.50300e-17, 6.55704e-17, 3.30372e-17, 9.11506e-17, 1.01378e-16, 2.00103e-17, 6.49886e-17, 7.45460e-17, 7.33481e-17, 7.50126e-17, 9.99019e-17, 8.89169e-17, 8.47961e-17, 1.03669e-16, 7.17998e-17, 3.72627e-17, 1.01430e-16, 1.26390e-17, 2.80401e-17, 2.74440e-17, 7.47302e-17, 7.91236e-17, 1.07057e-16, 7.29379e-17, 5.47363e-17, 6.45613e-17, 3.45950e-17, 2.26721e-17, 2.51231e-17, 1.29019e-16, 7.39083e-17, 9.30849e-17, 1.00387e-16, 6.17856e-17, 8.73652e-17, 8.33809e-17, 2.82513e-17, 5.10640e-17, 6.48720e-17, 3.45198e-17, 4.02976e-17, 3.75413e-17, 3.93731e-17, 4.39852e-17, 5.61922e-17, 6.09622e-17, 5.68329e-17, 4.09020e-17, 3.54738e-17, 6.87287e-17, 6.49512e-17, 7.62327e-17, 6.94141e-17, 6.50825e-17, 3.41077e-17, 6.64805e-17, 6.29456e-17, 5.63414e-17, 6.92036e-17, 6.28169e-17, 6.83096e-17, 9.53963e-17, 1.05265e-16, 6.38233e-17, 9.21252e-17, 8.00965e-17, 1.23935e-16, 7.97253e-17, 1.18427e-16, 1.14162e-16, 1.37965e-16, 1.31096e-16, 1.25352e-16, 1.15664e-16, 1.35295e-16, 1.29220e-16, 1.30147e-16, 1.09051e-16, 1.31286e-16, 1.72408e-16, 1.69264e-16, 2.06342e-16, 2.07711e-16, 1.63958e-16, 1.67212e-16, 1.84760e-16, 2.18164e-16, 2.06847e-16, 2.00095e-16, 2.56151e-16, 2.43979e-16, 2.24526e-16, 2.50087e-16, 2.39783e-16, 2.51593e-16, 2.61679e-16, 2.55333e-16, 2.97045e-16, 2.54530e-16, 2.84714e-16, 3.13302e-16, 3.16262e-16, 3.05102e-16, 3.04747e-16, 3.14202e-16, 2.85127e-16, 3.09139e-16, 3.06794e-16, 3.11068e-16, 2.79433e-16, 2.83013e-16, 2.85361e-16, 2.83260e-16, 2.84044e-16, 2.93768e-16, 2.99069e-16, 3.23796e-16, 3.09923e-16, 2.42051e-16, 2.90051e-16, 3.02685e-16, 2.69021e-16, 3.22629e-16, 3.39134e-16, 3.53821e-16, 3.62224e-16, 3.60899e-16, 3.78398e-16, 3.84079e-16, 3.82896e-16, 3.86446e-16, 3.56395e-16, 3.77345e-16, 3.86627e-16, 4.04386e-16, 3.86949e-16, 3.94421e-16, 3.87842e-16, 3.80197e-16, 3.93028e-16, 3.72953e-16, 3.81938e-16, 3.78461e-16, 3.79988e-16, 3.77207e-16, 3.86041e-16, 3.59665e-16, 3.59226e-16, 3.54804e-16, 3.84477e-16, 3.45104e-16, 3.51326e-16, 3.57692e-16, 3.59260e-16, 3.36784e-16, 3.47005e-16, 3.35646e-16, 3.27106e-16, 3.20758e-16, 2.94229e-16, 3.23127e-16, 3.08624e-16, 3.04815e-16, 2.96571e-16, 2.85129e-16, 2.80746e-16, 3.23794e-16, 2.85766e-16, 2.83991e-16, 3.26229e-16, 2.78027e-16, 2.71488e-16, 2.75567e-16, 2.61694e-16, 2.18010e-16, 2.41648e-16, 2.22610e-16, 2.41735e-16, 2.32726e-16, 2.31238e-16, 2.57098e-16, 2.14677e-16, 2.00575e-16, 1.73005e-16, 1.60559e-16, 1.46430e-16, 1.51820e-16, 1.08661e-16, 9.15008e-17, 6.26521e-17, 4.98837e-17, 3.14155e-17, 1.02852e-17, 1.41037e-17, 9.24166e-18, -9.97679e-18, -8.11961e-18, -1.16118e-17]), 'err': np.array([1.44267e-17, 9.39796e-18, 3.60669e-18, 1.47583e-17, 1.18760e-17, 1.17012e-17, 7.85612e-18, 3.82812e-18, 1.91532e-17, 1.51791e-17, 8.49054e-18, 5.79668e-18, 1.45310e-17, 3.35901e-18, 2.40234e-17, 4.19186e-18, 1.12115e-17, 1.28660e-17, 5.42974e-18, 1.11606e-17, 1.04516e-17, 5.84383e-18, 8.09766e-18, 6.10112e-18, 9.03604e-18, 1.07862e-17, 9.94169e-18, 5.58080e-18, 3.48878e-18, 3.91421e-18, 1.14192e-17, 5.26872e-18, 6.29357e-18, 1.21772e-17, 1.01920e-18, 8.21162e-18, 4.14765e-18, 1.60815e-17, 7.20007e-18, 1.34185e-18, 1.18110e-17, 7.14245e-18, 1.07779e-17, 4.41279e-18, 8.15861e-18, 4.43453e-18, 5.23002e-18, 1.30679e-17, 1.18916e-17, 2.96916e-18, 9.63199e-18, 3.33058e-18, 1.30241e-17, 5.93663e-18, 7.47479e-18, 9.09227e-18, 8.70806e-18, 1.39018e-17, 5.94256e-18, 7.04995e-18, 2.51072e-18, 1.21052e-17, 5.66318e-18, 5.72106e-18, 3.32976e-18, 1.33958e-17, 5.89448e-18, 3.81994e-18, 1.07840e-17, 3.78818e-18, 5.22378e-18, 5.15047e-18, 6.03181e-18, 4.96580e-18, 3.76088e-18, 3.76793e-18, 1.06263e-17, 6.05299e-18, 4.54100e-19, 3.60675e-18, 2.18715e-18, 8.37280e-18, 6.82390e-19, 4.65019e-18, 4.30857e-18, 5.91176e-18, 1.13332e-17, 6.17646e-18, 6.45829e-18, 5.51416e-18, 6.03802e-18, 1.10623e-17, 5.96755e-18, 7.63685e-18, 3.24410e-18, 3.38191e-18, 1.04282e-17, 6.41567e-18, 8.67234e-18, 1.82138e-18, 7.41528e-18, 1.43143e-17, 7.49025e-18, 8.94327e-18, 6.04160e-19, 8.07832e-18, 1.99906e-18, 1.18686e-17, 8.58993e-18, 2.53134e-18, 2.65190e-18, 1.72844e-18, 2.37907e-18, 4.74630e-18, 4.60149e-18, 7.67083e-18, 5.61040e-18, 7.27818e-18, 7.20101e-18, 5.94922e-18, 1.32375e-17, 2.12971e-18, 3.57119e-18, 9.01909e-18, 1.28044e-17, 4.84731e-18, 2.34982e-18, 1.32140e-17, 1.62124e-17, 8.35441e-18, 5.52674e-18, 2.51730e-17, 4.22138e-17, 7.43246e-18, 1.54904e-17, 5.60788e-18, 2.10202e-17, 5.59712e-18, 1.40385e-17, 1.46702e-17, 3.55523e-18, 6.40283e-18, 7.26815e-18, 1.43657e-17, 4.97017e-18, 2.20105e-17, 4.72844e-18, 7.61385e-18, 1.53889e-17, 8.34610e-18, 7.39056e-18, 4.78946e-18, 3.83680e-18, 6.85180e-18, 9.83226e-18, 1.00697e-17, 8.82994e-18, 6.15610e-18, 2.49007e-18, 3.57766e-18, 3.70838e-18, 4.73696e-18, 8.99528e-18, 1.17506e-17, 2.24325e-18, 1.07617e-18, 7.33373e-18, 5.86627e-18, 5.94382e-18, 8.70624e-18, 2.40176e-18, 4.16986e-18, 4.67267e-18, 5.60158e-18, 7.34753e-18, 3.24877e-18, 2.68052e-18, 7.33543e-18, 1.03867e-17, 6.16063e-18, 4.49339e-18, 2.55891e-18, 5.20787e-18, 2.94653e-18, 5.30391e-18, 2.06687e-18, 4.66071e-18, 3.30953e-18, 5.02283e-18, 9.85399e-18, 3.46598e-18, 1.18086e-17, 3.76289e-18, 7.98900e-18, 4.69416e-19, 5.03172e-18, 5.62311e-18, 2.33653e-18, 1.53132e-18, 4.67283e-18, 4.95532e-18, 3.86552e-18, 1.72957e-18, 5.70526e-18, 5.28492e-18, 1.71497e-18, 7.38928e-18, 3.39120e-18, 6.20346e-18, 4.47830e-18, 5.94599e-19, 3.20522e-18, 4.65689e-18, 3.38597e-18, 5.44697e-18, 2.62566e-18, 3.80269e-18, 4.16880e-18, 2.35483e-18, 5.97330e-18, 4.19200e-18, 5.45026e-18, 5.54980e-18, 3.93297e-18, 5.63215e-18, 2.58568e-18, 5.02349e-18, 8.28704e-18, 5.14759e-18, 8.71064e-18, 8.13762e-18, 1.16380e-17, 5.79699e-18, 6.59459e-18, 7.49810e-18, 3.45554e-18, 6.65329e-18, 6.87768e-18, 9.21573e-18, 1.13134e-17, 8.01668e-18, 3.21134e-18, 9.78585e-18, 5.87517e-18, 4.37153e-18, 4.92468e-18, 1.75007e-18, 4.42483e-18, 7.59931e-18, 5.27330e-18, 1.36363e-18, 8.11199e-18, 6.19202e-18, 2.95930e-18, 4.48666e-18, 1.66229e-18, 3.30817e-18, 4.51057e-18, 5.58100e-18, 2.35060e-19, 2.94611e-18, 6.22547e-18, 2.25981e-18, 5.31818e-18, 6.21490e-18, 9.27572e-18, 1.28441e-18, 2.41657e-18, 2.61607e-18, 4.62718e-18, 4.96919e-18, 3.12723e-18, 3.44868e-18, 3.84819e-18, 4.64681e-18, 5.64614e-18, 5.11441e-18, 6.61298e-18, 3.10747e-18, 7.48106e-18, 9.18616e-18, 2.08124e-18, 4.35788e-18, 2.10819e-18, 1.76036e-18, 3.13940e-18, 5.79565e-18, 1.64788e-18, 4.94214e-18, 3.43060e-18, 4.35477e-18, 3.55163e-18, 2.56069e-18, 2.10590e-18, 4.91459e-18, 4.95496e-18, 3.94451e-18, 9.67908e-18, 5.69779e-18, 4.16100e-18, 5.38489e-19, 4.89268e-18, 4.68528e-18, 9.50693e-19, 9.55919e-19, 8.98440e-19, 6.62249e-19, 1.06730e-18, 2.86153e-18, 1.30700e-18, 6.00654e-18, 1.98790e-18, 4.37501e-18, 7.01426e-18, 3.68088e-18, 2.96578e-18, 1.31760e-17, 4.79330e-18, 1.03443e-17, 7.64400e-18, 2.34862e-18, 6.25930e-18, 6.15131e-18, 5.59049e-18, 4.79093e-18])}, 'SPHERE H': {'wave': np.array([1.50044, 1.50158, 1.50272, 1.50385, 1.50499, 1.50612, 1.50726, 1.5084 , 1.50953, 1.51067, 1.51181, 1.51294, 1.51408, 1.51521, 1.51635, 1.51749, 1.51862, 1.51976, 1.5209 , 1.52203, 1.52317, 1.52431, 1.52544, 1.52658, 1.52771, 1.52885, 1.52999, 1.53112, 1.53226, 1.5334 , 1.53453, 1.53567, 1.5368 , 1.53794, 1.53908, 1.54021, 1.54135, 1.54249, 1.54362, 1.54476, 1.5459 , 1.54703, 1.54817, 1.54931, 1.55044, 1.55158, 1.55271, 1.55385, 1.55499, 1.55612, 1.55726, 1.5584 , 1.55953, 1.56067, 1.56181, 1.56294, 1.56408, 1.56522, 1.56635, 1.56749, 1.56863, 1.56976, 1.5709 , 1.57204, 1.57317, 1.57431, 1.57545, 1.57658, 1.57772, 1.57886, 1.57999, 1.58113, 1.58227, 1.5834 , 1.58454, 1.58568, 1.58681, 1.58795, 1.58909, 1.59022, 1.59136, 1.5925 , 1.59363, 1.59477, 1.59591, 1.59704, 1.59818, 1.59932, 1.60046, 1.60159, 1.60273, 1.60387, 1.605 , 1.60614, 1.60728, 1.60842, 1.60955, 1.61069, 1.61183, 1.61296, 1.6141 , 1.61524, 1.61638, 1.61751, 1.61865, 1.61979, 1.62093, 1.62206, 1.6232 , 1.62434, 1.62548, 1.62661, 1.62775, 1.62889, 1.63003, 1.63116, 1.6323 , 1.63344, 1.63458, 1.63571, 1.63685, 1.63799, 1.63913, 1.64027, 1.6414 , 1.64254, 1.64368, 1.64482, 1.64596, 1.64709, 1.64823, 1.64937, 1.65051, 1.65165, 1.65278, 1.65392, 1.65506, 1.6562 , 1.65734, 1.65848, 1.65961, 1.66075, 1.66189, 1.66303, 1.66417, 1.66531, 1.66644, 1.66758, 1.66872, 1.66986, 1.671 , 1.67214, 1.67328, 1.67442, 1.67556, 1.67669, 1.67783, 1.67897, 1.68011, 1.68125, 1.68239, 1.68353, 1.68467, 1.68581, 1.68695, 1.68809, 1.68922, 1.69036, 1.6915 , 1.69264, 1.69378, 1.69492, 1.69606, 1.6972 , 1.69834, 1.69948, 1.70062, 1.70176, 1.7029 , 1.70404, 1.70518, 1.70632, 1.70746, 1.7086 , 1.70974, 1.71088, 1.71202, 1.71316, 1.7143 , 1.71544, 1.71658, 1.71772, 1.71886, 1.72 , 1.72114, 1.72229, 1.72343, 1.72457, 1.72571, 1.72685, 1.72799, 1.72913, 1.73027, 1.73141, 1.73255, 1.73369, 1.73484, 1.73598, 1.73712, 1.73826, 1.7394 , 1.74054, 1.74168, 1.74283, 1.74397, 1.74511, 1.74625, 1.74739, 1.74853, 1.74968, 1.75082, 1.75196, 1.7531 , 1.75424, 1.75539, 1.75653, 1.75767, 1.75881, 1.75996, 1.7611 , 1.76224, 1.76338, 1.76453, 1.76567, 1.76681, 1.76795, 1.7691 , 1.77024, 1.77138, 1.77253, 1.77367, 1.77481, 1.77596, 1.7771 , 1.77824, 1.77939, 1.78053, 1.78167, 1.78282, 1.78396, 1.7851 , 1.78625, 1.78739, 1.78854, 1.78968, 1.79082, 1.79197, 1.79311, 1.79426, 1.7954 , 1.79655, 1.79769, 1.79883, 1.79998]), 'flux': np.array([ 4.98915e-17, 4.54645e-17, 6.18082e-17, 3.59522e-17, 7.69728e-17, 6.44842e-17, 7.43538e-17, 8.17219e-17, 7.51404e-17, 8.17266e-17, 7.79242e-17, 8.14239e-17, 9.74615e-17, 9.21091e-17, 4.72323e-17, 8.39367e-17, 9.13841e-17, 9.62850e-17, 7.95499e-17, 8.71420e-17, 9.17138e-17, 1.04632e-16, 8.52991e-17, 8.96973e-17, 9.88008e-17, 9.19919e-17, 9.61193e-17, 9.54003e-17, 9.22455e-17, 1.03763e-16, 1.05121e-16, 1.08842e-16, 1.21970e-16, 9.74718e-17, 1.10198e-16, 1.08811e-16, 1.18374e-16, 1.01604e-16, 1.08731e-16, 1.24747e-16, 1.23793e-16, 1.19449e-16, 1.26035e-16, 1.22447e-16, 1.40424e-16, 1.22774e-16, 1.32900e-16, 1.41083e-16, 1.38638e-16, 1.37916e-16, 1.35303e-16, 1.42477e-16, 1.45845e-16, 1.56063e-16, 1.55209e-16, 1.45961e-16, 1.62274e-16, 1.78092e-16, 1.63948e-16, 1.68517e-16, 1.66357e-16, 1.74573e-16, 1.69382e-16, 1.78235e-16, 1.81869e-16, 1.91834e-16, 1.72141e-16, 1.83377e-16, 1.99245e-16, 1.82030e-16, 1.96064e-16, 2.01507e-16, 1.99324e-16, 1.90150e-16, 2.05459e-16, 1.87490e-16, 2.05115e-16, 1.85385e-16, 1.88023e-16, 1.77571e-16, 1.78737e-16, 1.83188e-16, 1.79371e-16, 1.79684e-16, 1.64790e-16, 1.78548e-16, 1.83428e-16, 1.48236e-16, 1.63673e-16, 1.52427e-16, 1.41737e-16, 1.29724e-16, 1.36781e-16, 1.32955e-16, 1.12231e-16, 1.10505e-16, 1.04239e-16, 9.53154e-17, 9.28435e-17, 8.56385e-17, 8.53562e-17, 7.95526e-17, 7.42967e-17, 6.37978e-17, 7.55514e-17, 6.91956e-17, 6.31525e-17, 6.75068e-17, 4.97394e-17, 5.82465e-17, 4.91177e-17, 5.64598e-17, 5.81316e-17, 4.99573e-17, 3.25788e-17, 4.27912e-17, 4.89998e-17, 4.98087e-17, 5.16928e-17, 5.32702e-17, 4.44043e-17, 5.41911e-17, 6.49366e-17, 4.86598e-17, 5.42989e-17, 6.15098e-17, 5.70758e-17, 6.55579e-17, 6.58847e-17, 6.49527e-17, 5.55767e-17, 6.93004e-17, 6.93392e-17, 8.05837e-17, 6.19216e-17, 7.49514e-17, 7.30751e-17, 6.71619e-17, 7.28494e-17, 6.81922e-17, 7.71769e-17, 7.92854e-17, 6.77504e-17, 5.88334e-17, 5.25392e-17, 5.07363e-17, 5.07471e-17, 3.23250e-17, 3.02002e-17, 2.64140e-17, 2.39197e-17, 4.19116e-17, 3.94391e-17, 3.89738e-17, 4.04468e-17, 5.39917e-17, 6.76932e-17, 5.92915e-17, 5.51850e-17, 5.38947e-17, 5.90469e-17, 4.80388e-17, 5.98411e-17, 5.63543e-17, 5.22595e-17, 5.30335e-17, 4.75860e-17, 3.50951e-17, 5.13673e-17, 4.10098e-17, 5.12330e-17, 5.01689e-17, 5.00134e-17, 4.20792e-17, 4.66691e-17, 4.00646e-17, 4.62281e-17, 3.97607e-17, 3.67838e-17, 3.66304e-17, 3.13405e-17, 4.56741e-17, 3.75810e-17, 3.33239e-17, 5.01795e-17, 3.86358e-17, 3.77238e-17, 3.84670e-17, 4.07987e-17, 3.05681e-17, 4.85493e-17, 4.45171e-17, 4.36770e-17, 4.40920e-17, 4.17104e-17, 3.99132e-17, 3.28438e-17, 3.80950e-17, 3.84429e-17, 4.18006e-17, 3.56054e-17, 3.61481e-17, 3.54759e-17, 3.32447e-17, 2.61595e-17, 3.32389e-17, 2.40467e-17, 1.98529e-17, 2.08594e-17, 2.54754e-17, 1.96538e-17, 2.75169e-17, 1.36764e-17, 2.55387e-17, 1.91792e-17, 1.82012e-17, 1.45640e-17, 1.54296e-17, 2.77255e-17, 2.22753e-17, 2.11616e-17, 2.35552e-18, 1.80889e-17, 5.35923e-18, 1.60965e-17, 1.84225e-17, 1.71731e-17, 1.22572e-17, 1.71641e-17, 2.42359e-17, 1.98872e-17, 8.21923e-18, 1.05373e-17, 6.41748e-18, -6.78349e-18, -2.19970e-18, 1.79732e-17, 1.32174e-17, 7.04770e-18, 1.01052e-17, 1.23296e-17, 3.51436e-18, 7.25261e-18, -3.80674e-18, 1.44206e-17, 1.29704e-17, 2.67159e-18, 1.47237e-17, -4.14358e-18, 3.87837e-18, -1.28308e-17, 1.34641e-18, 1.05386e-17, 1.18536e-17, 1.30685e-17, 1.63896e-17, 3.10010e-18, -2.05137e-17, -5.25971e-18, 1.10131e-17, -1.56078e-18, 2.91285e-18, 1.10502e-17, 4.33352e-19]), 'err': np.array([1.81672e-18, 7.50074e-18, 5.73512e-18, 6.24864e-18, 7.06663e-18, 4.40504e-18, 4.17795e-18, 9.88568e-18, 8.39430e-19, 6.78080e-18, 8.91594e-18, 5.87563e-18, 5.75647e-18, 1.02898e-17, 1.58085e-17, 5.32591e-18, 9.94469e-18, 4.23464e-18, 5.11735e-18, 1.23394e-17, 7.38634e-18, 1.67774e-18, 3.78605e-18, 5.06817e-18, 4.45340e-18, 1.29233e-18, 5.53681e-18, 7.21944e-18, 8.38721e-19, 9.83943e-18, 7.41876e-18, 3.92738e-18, 6.74601e-18, 8.91980e-18, 1.53449e-17, 6.43077e-18, 1.11755e-17, 5.90419e-18, 1.45427e-17, 1.20787e-17, 1.08382e-17, 8.58055e-18, 4.89042e-18, 9.98691e-18, 9.04950e-18, 3.88414e-18, 5.29438e-18, 4.84993e-18, 4.26400e-18, 2.17072e-18, 1.93913e-18, 3.80933e-18, 3.09318e-18, 3.11443e-18, 2.80567e-18, 7.79726e-19, 7.75887e-18, 3.02166e-18, 4.17885e-18, 3.65580e-18, 4.43954e-18, 2.59627e-18, 3.56036e-18, 5.39000e-18, 5.69055e-18, 5.02387e-18, 3.20133e-18, 2.83626e-18, 5.77781e-18, 1.29961e-18, 4.49226e-18, 3.34420e-18, 1.00110e-18, 2.76526e-18, 2.33461e-18, 4.34360e-18, 6.08290e-18, 2.88293e-18, 1.44006e-18, 4.19363e-18, 6.31617e-18, 7.18734e-18, 3.24481e-18, 3.72100e-18, 3.70341e-18, 2.39390e-18, 9.32549e-19, 5.57873e-18, 1.83469e-18, 2.01128e-18, 3.26383e-18, 2.78360e-18, 1.65854e-18, 1.65868e-18, 1.16369e-18, 2.32681e-18, 1.22450e-18, 8.80866e-19, 1.75679e-18, 3.29246e-18, 4.37039e-18, 5.69521e-18, 3.10317e-18, 3.10546e-18, 1.18487e-18, 9.81324e-19, 1.21679e-18, 2.34260e-18, 2.78011e-18, 2.30371e-18, 3.62287e-18, 1.15550e-18, 3.90406e-18, 2.32377e-18, 3.91959e-19, 1.45547e-18, 3.29415e-18, 4.02838e-18, 8.28016e-19, 9.63486e-19, 3.50116e-18, 3.74162e-18, 9.26382e-19, 1.46514e-18, 7.92378e-19, 1.93471e-18, 1.44509e-18, 3.28682e-18, 2.60645e-18, 7.56623e-19, 1.66789e-18, 9.35680e-19, 4.38101e-19, 5.62884e-18, 2.29645e-18, 1.35728e-18, 9.72387e-19, 6.93235e-19, 4.14284e-18, 1.16119e-18, 1.59525e-18, 1.14110e-18, 1.07452e-18, 2.23724e-18, 4.49008e-18, 2.67638e-18, 4.28298e-18, 1.63466e-18, 4.68469e-19, 1.44941e-18, 2.60810e-19, 1.54105e-18, 8.25707e-19, 2.39131e-18, 1.97179e-18, 3.79361e-18, 3.67289e-18, 2.15792e-18, 9.78262e-19, 1.28670e-18, 9.52386e-19, 2.06874e-18, 2.78371e-18, 3.71125e-18, 1.40245e-18, 1.47463e-18, 1.14594e-18, 7.71457e-19, 1.50950e-18, 3.48218e-18, 1.45770e-18, 1.52932e-18, 2.24397e-18, 2.16688e-18, 1.72615e-18, 9.00389e-19, 7.09703e-19, 2.82577e-18, 3.31711e-18, 1.17106e-18, 3.53051e-18, 2.49276e-18, 3.13421e-18, 3.80944e-18, 3.36912e-18, 2.23035e-18, 3.08520e-18, 1.06869e-18, 5.49825e-18, 2.03651e-18, 2.04803e-18, 2.75148e-18, 2.22827e-18, 3.71404e-18, 2.28487e-18, 4.74884e-18, 5.73172e-18, 4.42814e-18, 4.21461e-18, 1.37569e-18, 1.81471e-18, 2.32741e-18, 1.76291e-18, 1.32526e-18, 2.91339e-18, 1.81275e-18, 3.58810e-18, 1.97170e-18, 3.14379e-18, 2.76957e-18, 1.95618e-18, 2.36627e-18, 1.67231e-18, 3.16858e-18, 2.41754e-18, 2.21938e-18, 1.28798e-18, 3.47979e-18, 2.87482e-18, 1.69286e-18, 3.89275e-18, 1.55023e-18, 4.36099e-18, 5.27126e-18, 3.28721e-18, 1.37843e-18, 1.86220e-18, 1.62772e-18, 1.60996e-18, 4.92819e-18, 1.96197e-18, 4.63388e-18, 6.87896e-19, 4.45928e-18, 1.27135e-18, 3.03439e-18, 2.01043e-18, 3.14187e-18, 3.62706e-18, 3.37076e-18, 4.83731e-18, 3.16237e-18, 5.40946e-18, 4.89848e-18, 3.95995e-18, 1.88072e-18, 7.90598e-18, 4.73072e-18, 6.93131e-18, 3.93764e-18, 1.10672e-18, 2.83913e-18, 2.52243e-18, 5.91956e-18, 6.55944e-18, 2.53760e-18, 3.98962e-18, 6.26563e-18, 6.19430e-18, 1.23677e-18, 1.07393e-17, 4.01036e-18, 6.58216e-19, 6.28902e-18])}}}}
photometric_archive = {'HD 19467': {'Ruffio 2023': {'JWST/NIRCam.F250M': {'flux': 8.804745894539017e-18, 'err': 4.306669187546258e-19}, 'JWST/NIRCam.F300M': {'flux': 1.2023740251799909e-17, 'err': 1.6699639238610986e-19}, 'JWST/NIRCam.F360M': {'flux': 1.2415479091747555e-17, 'err': 1.3718761427345361e-19}, 'JWST/NIRCam.F410M': {'flux': 2.9720597821465055e-17, 'err': 1.7903974591244013e-19}, 'JWST/NIRCam.F430M': {'flux': 1.8329524028299416e-17, 'err': 1.6365646453838765e-19}, 'JWST/NIRCam.F460M': {'flux': 1.0726214738003767e-17, 'err': 2.243391317752422e-19}}, 'Crepp 2014': {'Keck/NIRC2.J': {'flux': 2.757671845138688e-16, 'err': 2.798682703388322e-17}, 'Keck/NIRC2.H': {'flux': 8.274062649135807e-17, 'err': 8.397110796090086e-18}, 'Keck/NIRC2.Ks': {'flux': 2.885744855702994e-17, 'err': 2.3948226891806298e-18}}, 'Maire 2020': {'Paranal/SPHERE.IRDIS_D_H23_2': {'flux': 2.1396985503563201e-16, 'err': 9.857159219506413e-18}, 'Paranal/SPHERE.IRDIS_D_H23_3': {'flux': 7.689337203983001e-17, 'err': 3.542322403289598e-18}, 'Paranal/SPHERE.IRDIS_D_K12_1': {'flux': 8.141478080106477e-17, 'err': 5.252642065975224e-18}, 'Paranal/SPHERE.IRDIS_D_K12_2': {'flux': 1.4389944641231865e-17, 'err': 1.0612499765083424e-18}, 'Paranal/NACO.Lp': {'flux': 3.374274697294295e-17, 'err': 5.304911149170225e-18}}}}
This cell stores the distance in parsec to the object(s) being analyzed, to make the multiplicative re-scaling the atmosphere meaningful in physical units. The dictionary again is useful when iterating over multiple targets but trivial in the case of a single target.
[149]:
system_distances_pc = {}
system_distances_pc['HD 19467'] = 32.03

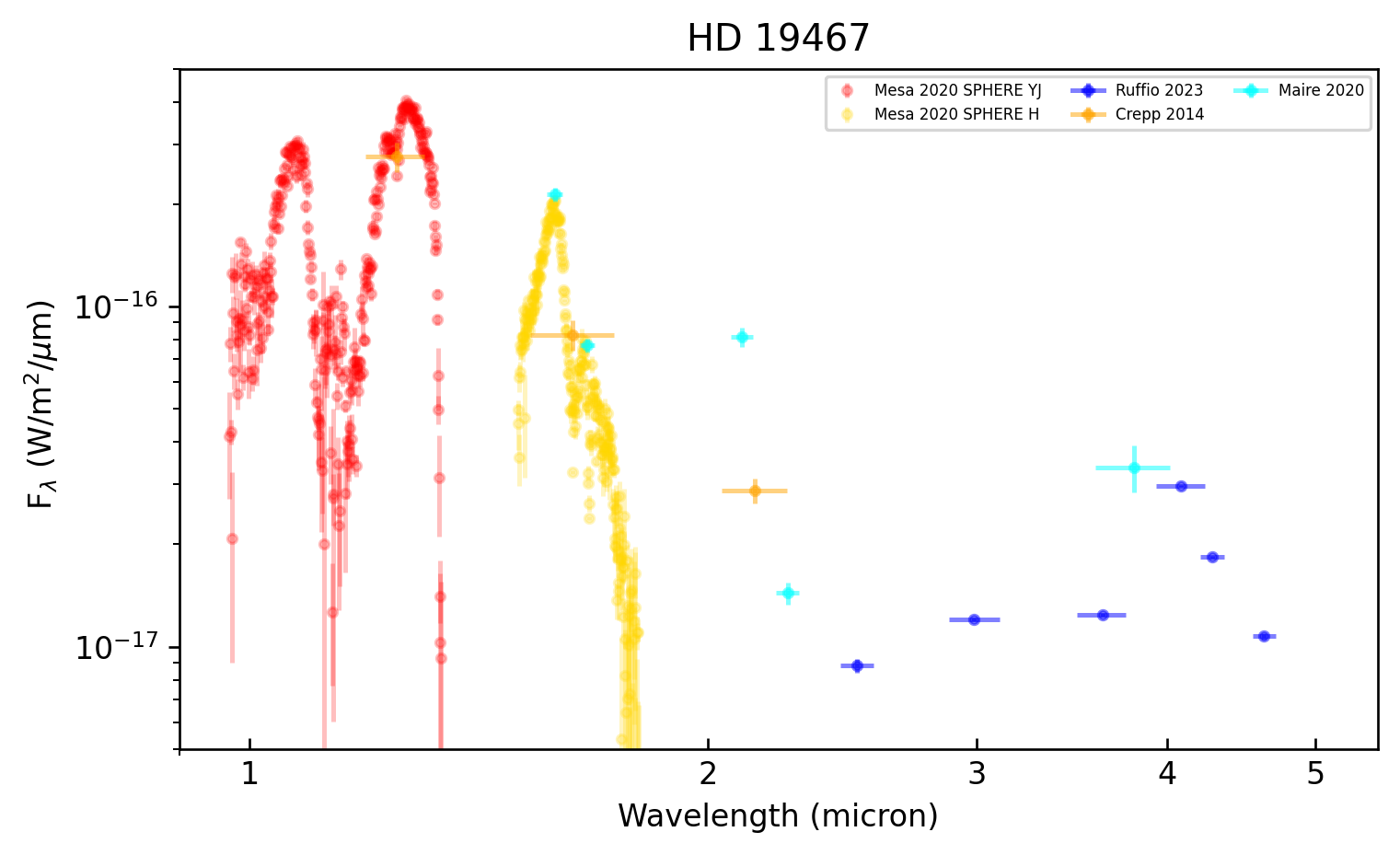

Below is an example plot of the data dictionaries, showing how to iterate over the nested layers using their keys.
[208]:
def synphot_2_xerr(synphot):
'''transforms 1-sigma range of synphot transmission curve profile to x-error object for plotting photometric points'''
wlr = synphot.wavel_range
photw = np.linspace(wlr[0],wlr[1],10000)
T = synphot.filter_interp(photw)
sumT = np.cumsum(T)/np.sum(T)
xl = photw[np.argmin(abs(sumT - 0.16))]
xm = photw[np.argmin(abs(sumT - 0.5))]
xr = photw[np.argmin(abs(sumT - 0.84))]
xerr = np.array([xm-xl,xr-xm]).reshape(2,1)
if False:
plt.plot(photw,T)
plt.plot(photw,sumT)
plt.plot(xl,0.5,'k.')
plt.plot(xm,0.5,'k.')
plt.plot(xr,0.5,'k.')
plt.errorbar(xm,0.5,xerr =xerr)
return xm, xerr
plt.figure(figsize=(7,4),dpi=240)
colors = ['red','gold']
colors2 = ['blue','orange','cyan']
target = 'HD 19467'
phot_refd = photometric_archive[target]
spec_refd = spectroscopic_archive[target]
ri = 0
for ref in spec_refd.keys():
specd = spec_refd[ref]
print('-',ref)
for inst in specd.keys():
print('--',inst)
color = colors[ri]
wave,flux,err = specd[inst]['wave'],specd[inst]['flux'],specd[inst]['err']
plt.errorbar(wave,flux,yerr=err,label=ref+' '+inst,linestyle='none',marker='.',zorder=-1,alpha=0.25,color=color)
ri += 1
for ri,ref in enumerate(phot_refd.keys()):
photd = phot_refd[ref]
print('-',ref)
color = colors2[ri]
for bi,band in enumerate(photd.keys()):
print('--',band)
synphot = SyntheticPhotometry(band)
xm, xerr = synphot_2_xerr(synphot)
flux, err = photd[band]['flux'],photd[band]['err']
if bi == 0:
label = ref
else:
label = None
if flux==0:
plt.errorbar(xm,err,xerr=xerr,marker='v',label=label,color=color,zorder=2,alpha=0.5)
else:
plt.errorbar(xm,flux,xerr=xerr,yerr=err,marker='.',label=label,color=color,zorder=2,alpha=0.5)
plt.tick_params(axis='x', direction='in')
plt.title(target)
plt.legend(fontsize=5,ncols=3)
plt.ylim(5e-18,5e-16)
plt.yscale('log')
plt.ylabel(r' F$_\lambda$ (W/m$^2$/$\mu$m)')
plt.xlim([.9,5.5])
plt.xscale('log')
plt.xticks([1,2,3,4,5],['1','2','3','4','5'])
plt.xlabel('Wavelength (micron)')
plt.show()
- Mesa 2020
-- SPHERE YJ
-- SPHERE H
- Ruffio 2023
-- JWST/NIRCam.F250M
-- JWST/NIRCam.F300M
-- JWST/NIRCam.F360M
-- JWST/NIRCam.F410M
-- JWST/NIRCam.F430M
-- JWST/NIRCam.F460M
- Crepp 2014
-- Keck/NIRC2.J
-- Keck/NIRC2.H
-- Keck/NIRC2.Ks
- Maire 2020
-- Paranal/SPHERE.IRDIS_D_H23_2
-- Paranal/SPHERE.IRDIS_D_H23_3
-- Paranal/SPHERE.IRDIS_D_K12_1
-- Paranal/SPHERE.IRDIS_D_K12_2
-- Paranal/NACO.Lp
Defining the custom likelihood function
The following function will be passed to the dynesty sampler to compute the likelihood of our data given a model with particular parameters. It first computes the model atmosphere flux at R=100 and R=2700 by sampling the precomputed broadRGI objects, which is then rescaled by (radius/distance)^2, stretched according to the radial velocity parameter, and high-pass filtered with the custom splines and breads.utils.filter_spec_with_spline. Then, the covariance matrices computed in
notebook #3 are used to compute the chi-squared for the continuum-subtracted NIRSpec spectra, while chi-squared for the photometry and SPHERE spectroscopy are added after (with no covariance being used.)
[142]:
def log_likelihood(parameters):
teff, logg, mh, co, logkzz, planet_radius, delta_radial_velocity = parameters
flux2700 = bRGI2700([teff, logg, mh, co, logkzz])[0]
flux100 = bRGI100([teff, logg, mh, co, logkzz])[0]
planet_r2d2 = ((planet_radius*u.Rjup/distance)**2).to(u.dimensionless_unscaled).value
flux2700_rescaled = flux2700*planet_r2d2
flux100_rescaled = flux100*planet_r2d2
radial_velocity = best_RV + delta_radial_velocity
rv_wave = wave*(1 + radial_velocity/const.c.value)
downsample_RVshift_flux2700_rescaled = np.interp(rv_wave,bRGI2700.wavelength,flux2700_rescaled)
model_hpf, _ = filter_spec_with_spline(wave,downsample_RVshift_flux2700_rescaled,x_nodes=wv_nodes_dict['all'])
v = (spec_hpf - model_hpf)[valid]
covchi2 = np.linalg.multi_dot([v.T,Cinv,v])
#compute chi2 on photom
chi2_photom = 0
for ref_key in photrefd.keys():
photometric_points = photrefd[ref_key]
for filter_key in photometric_points.keys():
flux_err_dict = photometric_points[filter_key]
flux,err = flux_err_dict['flux'],flux_err_dict['err']
synphot = synphots[filter_key]
band_flux, band_err = synphot.spectrum_to_flux(bRGI100.wavelength,flux100_rescaled)
chi2_band = ((flux - band_flux)/(err))**2
chi2_photom += chi2_band
#compute chi2 on spec
chi2_spec = 0
for ref_key in specrefd.keys():
spectroscopic_data = specrefd[ref_key]
for spec_key in spectroscopic_data.keys():
wfe_dict = spectroscopic_data[spec_key]
w,f,e = wfe_dict['wave'],wfe_dict['flux'],wfe_dict['err']
flux100_rescaled_downsample = np.interp(w,bRGI100.wavelength,flux100_rescaled)
chi2 = np.sum(((f - flux100_rescaled_downsample)/(e))**2)
chi2_spec += chi2
total_chi2 = covchi2 + chi2_photom + chi2_spec
log_likelihood = -1/2.*total_chi2
return log_likelihood
[ ]:
Running the Sampler
Before the sampler can be started, the likelihood function above requires a few key variables to be defined on a per-target basis. The Photometric and Spectroscopic data dictionaries are sliced and used to instantiate the species.phot.syn_phot.SyntheticPhotometry objects which will be computing the flux integrals for the photometry (this step is slow and much more performant to do it once at the beginning than in every iteration). Then the NIRSpec spectra is loaded from the data product
dictionary and filtered again for good measure. Additionally, the other target specific values are bound to variables distance,bRGI2700,bRGI100, and best_RV for use in the likelihood function. Then, we define the priors to be uniform over a bounds of the atmosphere model, with additional uniform bounds for radius (0.2 to 2 Rjup) and deltaRV (-15 to 15 km/s). Lastly, the sampler is called with 1000 live points using the ‘rwalk’ keyword to reach a dlogz=0.1.
[217]:
for target in target_list:
print(target)
#load data
photrefd = photometric_archive[target[:-2]]
specrefd = spectroscopic_archive[target[:-2]]
print('spectra: {}'.format(list(specrefd.keys())))
print('photometry: {}'.format(list(photrefd.keys())))
#create synphots
synphots = {}
for ref_key in photrefd.keys():
photometric_points = photrefd[ref_key]
for filter_key in photometric_points.keys():
synphot = SyntheticPhotometry(filter_key)
synphots[filter_key] = synphot
wse_dict = np.load(base_path+'products/{}.npy'.format(target),allow_pickle=True).item()
wave,spec,err,Cinv,valid = wse_dict['wave'],wse_dict['spec'],wse_dict['err'],wse_dict['Cinv'],wse_dict['valid']
spec_hpf,_ = filter_spec_with_spline(wave,spec,x_nodes=wv_nodes_dict['all'])
distance = system_distances_pc[target[:-2]]*u.pc
bRGI2700 = bRGI_dict2700[target]
bRGI100 = bRGI_dict100[target]
best_RV = best_RVs[target]
print('best RV: {}'.format(best_RV))
param_list = list(bRGI2700.points.values())
shape = tuple([len(l) for l in param_list])
npoints = np.prod(shape)
param_outer_product = np.array(np.meshgrid(*[list(l) for l in param_list])).T.reshape(npoints,len(shape))
#define prior
#inherit params
uppers = []
lowers = []
for i in range(5):
p_i = param_list[i]
uppers.append(p_i[-1])
lowers.append(p_i[0])
#radius (Rjup)
uppers.append(2)
lowers.append(0.5)
#dRV (m/s)
uppers.append(15*1e3)
lowers.append(-15*1e3)
uppers = np.array(uppers)
lowers = np.array(lowers)
def prior(p):
x = ((uppers-lowers)*p + lowers) #flat prior for all parameters
return x
sampler = dynesty.NestedSampler(log_likelihood, prior, 7, nlive=1000, pool=Pool() ,queue_size=os.cpu_count(), sample='rwalk')
savefname = base_path+'samples/{}-all_datasets'.format(target)
sampler.run_nested(dlogz=0.1,checkpoint_file=savefname+'.save')
results = sampler.results
np.save(savefname+'-results.npy',results)
HD 19467 J
spectra: ['Mesa 2020']
photometry: ['Ruffio 2023', 'Crepp 2014', 'Maire 2020']
best RV: 2000.0
46661it [1:41:47, 7.64it/s, +1000 | bound: 270 | nc: 1 | ncall: 1234174 | eff(%): 3.865 | loglstar: -inf < -40799.520 < inf | logz: -40843.850 +/- 0.204 | dlogz: 0.000 > 0.100]
[ ]:

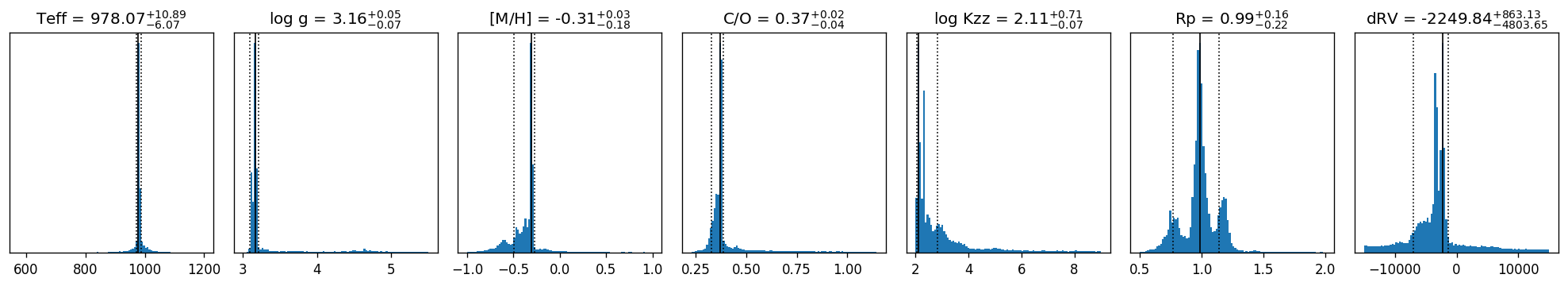

Plotting Posterior Distributions
The following cell loads the sampler results and uses breads.utils.get_err_from_posterior to compute posterior ranges on the distribution of samples and plots them in histograms.
[219]:
fig,ax = plt.subplots(1,7,figsize=(21,3),dpi=120,)
labels = ['Teff','log g','[M/H]','C/O','log Kzz','Rp','dRV']
posteriors = {}
for i,target in enumerate(target_list):
print(target[:-2])
savefname = base_path+'samples/{}-all_datasets'.format(target)
results = np.load(savefname+'-results.npy',allow_pickle=True).item()
post = []
for j in range(7):
y,x,_ = ax[j].hist(results.samples[:,j],bins=100)
cx,mx,px = get_err_from_posterior((x[1:]+x[:-1])/2,y)
post.append([cx,px,mx])
ax[j].set_title(r'{} = {}'.format(labels[j],np.round(cx,2))+r'$^{+'+str(np.round(px,2))+r'}_{-'+str(np.round(mx,2))+r'}$')
ax[j].set_yticks([])
ax[j].axvline(x=cx,linewidth=1,linestyle='-',color='k')
ax[j].axvline(x=cx+px,linewidth=1,linestyle=':',color='k')
ax[j].axvline(x=cx-mx,linewidth=1,linestyle=':',color='k')
posteriors[target] = post
plt.subplots_adjust(wspace=0.1)
plt.show()
HD 19467
[220]:
posteriors
[220]:
{'HD 19467 J': [[978.0721786550769, 10.893951789162998, 6.0689530022066265],
[3.1626939517956716, 0.04687290781591136, 0.06837396887239544],
[-0.31036945261103355, 0.03472901652126975, 0.18109647970880027],
[0.37097643914964606, 0.01716204237484481, 0.04178919282643684],
[2.105080745734343, 0.709426827646118, 0.06999419139910446],
[0.987725280870732, 0.1555715603580745, 0.21678629630781088],
[-2249.8375188601367, 863.1325642697016, 4803.649145018281]]}
[ ]:

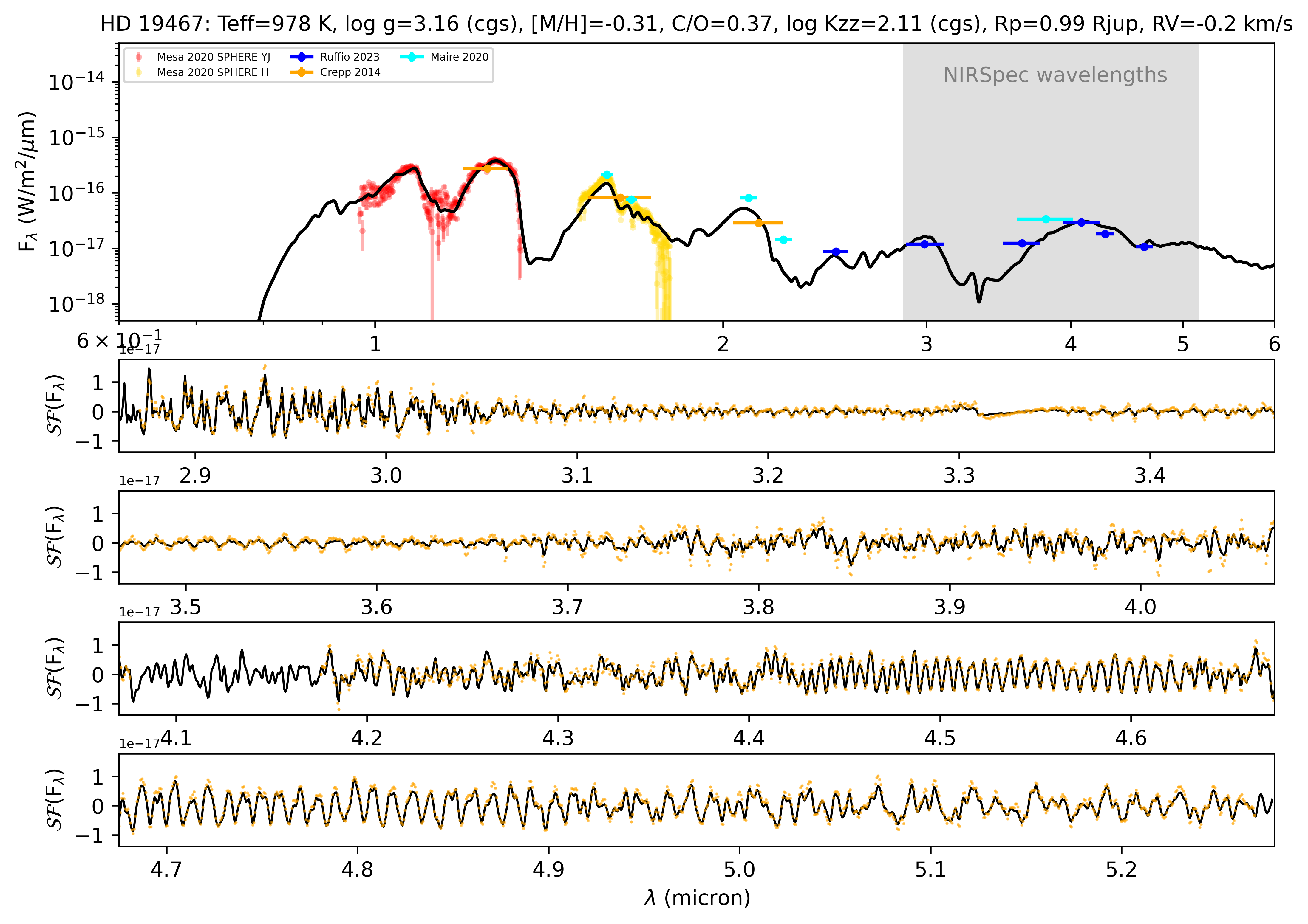

Plotting the best fit model
The final cell in the notebook combines everything we have done previously, to plot the best fit model and the data together into one visualization.
[221]:
colors = ['orange']
colors1 = ['red','gold']
colors2 = ['blue','orange','cyan']
for colori,target in enumerate(target_list):
fig, ax = plt.subplots(5,1,figsize=(10,7),dpi=500,gridspec_kw={'height_ratios':[3,1,1,1,1]})
post = posteriors[target]
teff_, logg_, mh_, co_, logkzz_, planet_radius_, delta_radial_velocity_, = post
teff, logg, mh, co, logkzz, planet_radius, delta_radial_velocity = teff_[0], logg_[0], mh_[0], co_[0], logkzz_[0], planet_radius_[0], delta_radial_velocity_[0]
best_RV = best_RVs[target]
wse_dict = np.load(base_path+'products/{}.npy'.format(target),allow_pickle=True).item()
wave,spec,err,Cinv,valid = wse_dict['wave'],wse_dict['spec'],wse_dict['err'],wse_dict['Cinv'],wse_dict['valid']
spec_hpf,_ = filter_spec_with_spline(wave,spec,x_nodes=wv_nodes_dict['all'])
distance = system_distances_pc[target[:-2]]*u.pc
bRGI2700 = bRGI_dict2700[target]
bRGI100 = bRGI_dict100[target]
radial_velocity = best_RV + delta_radial_velocity
rv_wave = wave*(1 + radial_velocity/const.c.value)
flux2700 = bRGI2700([teff, logg, mh, co, logkzz])[0]
flux100 = bRGI100([teff, logg, mh, co, logkzz])[0]
planet_r2d2 = ((planet_radius*u.Rjup/distance)**2).to(u.dimensionless_unscaled).value
flux100_rescaled = flux100*planet_r2d2
flux2700_rescaled = np.interp(rv_wave,bRGI2700.wavelength,flux2700)*planet_r2d2
hpf,_ = filter_spec_with_spline(wave,flux2700_rescaled,x_nodes=wv_nodes_dict['all'])
for i in [1,2,3,4]:
wind = np.where(np.diff(wave)<0)[0][0]+1
l4, = ax[i].plot(wave[wind:],hpf[wind:],'k',alpha=1,linewidth=1)
l4, = ax[i].plot(wave[:wind],hpf[:wind],'k',alpha=1,linewidth=1)
l5 = ax[i].errorbar(wave,spec,err,color=colors[colori],linestyle='none',alpha=.5,marker='.',markersize=1,linewidth=1)
ax[0].set_title(r'{}: Teff={} K, log g={} (cgs), [M/H]={}, C/O={}, log Kzz={} (cgs), Rp={} Rjup, RV={} km/s'.format(
target[:-2], int(teff), np.round(logg,2), np.round(mh,2), np.round(co,2), np.round(logkzz,2), np.round(planet_radius,2), np.round(radial_velocity/1000,1)), fontsize=10)
ax[0].plot(bRGI100.wavelength,flux100_rescaled,color='k')
phot_refd = photometric_archive[target[:-2]]
spec_refd = spectroscopic_archive[target[:-2]]
ri = 0
for ref in spec_refd.keys():
specd = spec_refd[ref]
print('-',ref)
for inst in specd.keys():
print('--',inst)
color = colors1[ri]
wave,flux,err = specd[inst]['wave'],specd[inst]['flux'],specd[inst]['err']
ax[0].errorbar(wave,flux,yerr=err,label=ref+' '+inst,linestyle='none',marker='.',zorder=1,alpha=0.3,color=color,markeredgewidth=0)
ri += 1
for ri,ref in enumerate(phot_refd.keys()):
photd = phot_refd[ref]
print('-',ref)
color = colors2[ri]
for bi,band in enumerate(photd.keys()):
print('--',band)
synphot = SyntheticPhotometry(band)
xm, xerr = synphot_2_xerr(synphot)
flux, err = photd[band]['flux'],photd[band]['err']
if bi == 0:
label = ref
else:
label = None
if flux==0:
ax[0].errorbar(xm,err,xerr=xerr,marker='v',label=label,color=color)
else:
ax[0].errorbar(xm,flux,xerr=xerr,yerr=err,marker='.',label=label,color=color)
ax[0].legend(fontsize=5,ncols=3)
ax[0].set_yscale('log')
ax[0].set_xscale('log')
ax[0].set_xlim([0.6,6])
ax[0].set_ylim([5e-19,5e-14])
ax[0].set_xticks([1,2,3,4,5,6])
ax[0].set_xticklabels(['1','2','3','4','5','6'])
dw = 0.605
ax[1].set_xlim([2.86,dw+2.86])
ax[2].set_xlim([1*dw+2.86,2*dw+2.86])
ax[3].set_xlim([2*dw+2.86,3*dw+2.86])
ax[4].set_xlim([3*dw+2.86,4*dw+2.86])
ax[0].set_ylabel(r'F$_\lambda$ (W/m$^2$/$\mu$m)')
ax[1].set_ylabel(r'$\mathcal{SF}$(F$_\lambda$)')
ax[2].set_ylabel(r'$\mathcal{SF}$(F$_\lambda$)')
ax[3].set_ylabel(r'$\mathcal{SF}$(F$_\lambda$)')
ax[4].set_ylabel(r'$\mathcal{SF}$(F$_\lambda$)')
for i in [1,2,3,4]:
ax[i].yaxis.get_offset_text().set_fontsize(6)
ax[4].set_xlabel(r'$\lambda$ (micron)')
import matplotlib.patches as patches
rect = patches.Rectangle((2.86, 5e-19), 5.16-2.86, 5e-14, linewidth=1, edgecolor='none', facecolor='grey',alpha=0.25)
ax[0].add_patch(rect)
ax[0].text(3.1,1e-14,'NIRSpec wavelengths',color='grey')
plt.subplots_adjust(hspace=0.3)
plt.show()
- Mesa 2020
-- SPHERE YJ
-- SPHERE H
- Ruffio 2023
-- JWST/NIRCam.F250M
-- JWST/NIRCam.F300M
-- JWST/NIRCam.F360M
-- JWST/NIRCam.F410M
-- JWST/NIRCam.F430M
-- JWST/NIRCam.F460M
- Crepp 2014
-- Keck/NIRC2.J
-- Keck/NIRC2.H
-- Keck/NIRC2.Ks
- Maire 2020
-- Paranal/SPHERE.IRDIS_D_H23_2
-- Paranal/SPHERE.IRDIS_D_H23_3
-- Paranal/SPHERE.IRDIS_D_K12_1
-- Paranal/SPHERE.IRDIS_D_K12_2
-- Paranal/NACO.Lp
[ ]:
